NOVUX™ SEC Splice/Patch Closure

Configure Product Variants
Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.

Your web browser (Internet Explorer 11 or lower) is out of date and the functions below will not work with Internet Explorer.
Update your browser for more security, speed, functionality and experience on this site.

Update browser

Product Variants Show All Clear

Configure and display product variants of SEC by selecting options

Loading...
Features and Benefits
The NOVUX SEC closure design is optimized for building façade applications The SEC closure connects as many as eight customers and is agnostic to connectivity technologies (splice, connector, field-installable connector) for agility and flexibility. The innovative removable hinge design allows cover to open from the left, right, or top. Optional hinge locking mechanism is available for extra security. Identification plate for either QR code or customer logo are available.

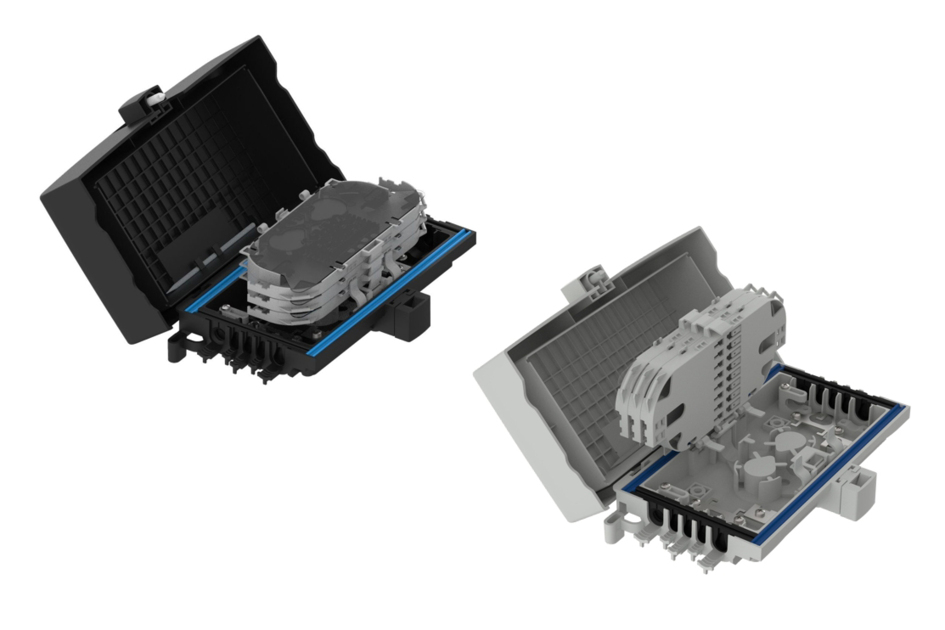

The SEC closure is offered in two types:

SEC3:
Color is black (RAL 9005)

SEC4:
Color is gray (RAL 7035)


Key features of the NOVUX closures:
  • NOVUX is the industry’s most flexible FTTX platform. It takes modularity to new levels with technologies that span the end-to-fiber network from the trunk to the drop. That makes it the go-to FTTX platform for virtually every application today and in the future.
  • NOVUX was designed from the ground up to help service providers gain access to the supplies they need –when and where they need them. And with the power of CommScope’s global supply chain, service providers can trust that they’ll be able to tackle even the largest FTTX deployments.
  • With NOVUX, ordering, configuration, and training are all easier on the service provider’s staff. With common components and installation procedures, it helps overcome craft labor shortages and reduce field errors, too.

Product Classification

Regional Availability Asia | EMEA | Latin America | North America
Regional Availability Note Contact your local CommScope representative for specific availability
Product Type In-line, rectangular fiber closure
Product Brand NOVUX™
Product Series SEC

General Specifications

Cable Capacity, Branch 2 Round 1.8–7.0 mm (0.07–0.27 in)
Cable Capacity, Drop 6 Round 1.8–7.0 mm (0.07–0.27 in)
Cable Capacity, Feeder 2 Round 9.0–12.0 mm (0.35–0.47 in)
Cable Ports Quantity, total 10 round ports
Cable Sealing Type Gasket/grommet configuration
Closure Sealing Type Hinged with lock
Closure Style In-line
Mounting Facade | Wall
Network Area Type Drop
Splicing Type, Supported Single fusion

Port Configuration

Click on image to enlarge.

Ordering Tree

Click on image to enlarge.

Optical Specifications

Fiber Type G.657.A1 | G.657.A2 | G.657.B3

Environmental Specifications

Environmental Space Facade | Outdoor
Qualification Standards IP55
UV Resistance UV stabilized

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system

Product Classification

Regional Availability Asia | EMEA | Latin America | North America
Regional Availability Note Contact your local CommScope representative for specific availability
Product Type In-line, rectangular fiber closure
Product Brand NOVUX™
Product Series SEC

General Specifications

Cable Capacity, Branch 2 Round 1.8–7.0 mm (0.07–0.27 in)
Cable Capacity, Drop 6 Round 1.8–7.0 mm (0.07–0.27 in)
Cable Capacity, Feeder 2 Round 9.0–12.0 mm (0.35–0.47 in)
Cable Ports Quantity, total 10 round ports
Cable Sealing Type Gasket/grommet configuration
Closure Sealing Type Hinged with lock
Closure Style In-line
Mounting Facade | Wall
Network Area Type Drop
Splicing Type, Supported Single fusion

Optical Specifications

Fiber Type G.657.A1 | G.657.A2 | G.657.B3

Environmental Specifications

Environmental Space Facade | Outdoor
Qualification Standards IP55
UV Resistance UV stabilized
Click on image to enlarge.
Click on image to enlarge.

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
