This product will be discontinued on: November 30, 2023

For other alternatives, please contact us for more information.

0 Replacement products available

2CPX208R-V3

4-port multibeam antenna, 4x 790–960 MHz, 2x 38° HPBW, 2x RET with manual override.

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.
Features and Benefits
  • Integrated Internal Remote Electrical Tilt (RET), with independent control of electrical tilt with manual override on all arrays
  • Single panel design supporting two separate beams perfectly optimized at horizontal pointing angles of +27 degrees and –27 degrees from boresight

General Specifications

Antenna Type Multibeam
Band Single band
Color Light Gray (RAL 7035)
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage
Radome Material Polyester fiberglass pultrusion
Radiator Material Low loss circuit board
Reflector Material Aluminum

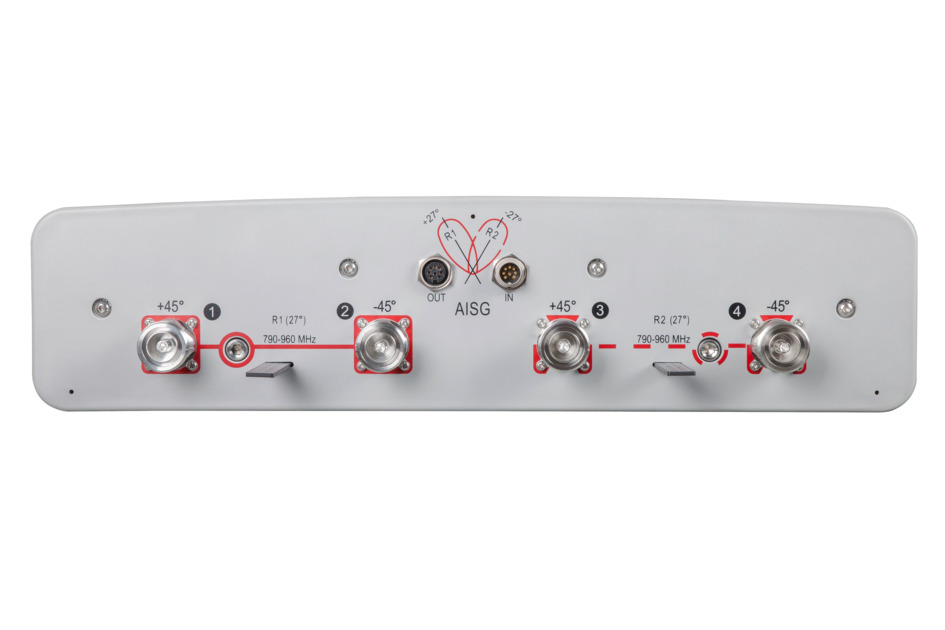

RF Connector Interface 7-16 DIN Female
RF Connector Location Bottom
RF Connector Quantity, low band 4
RF Connector Quantity, total 4

Remote Electrical Tilt (RET) Information

RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 1 female | 1 male
Input Voltage 10–30 Vdc
Internal RET Low band (2)
Power Consumption, idle state, maximum 2 W
Power Consumption, normal conditions, maximum 13 W
Protocol 3GPP/AISG 2.0 (Single RET)

Dimensions

Width 504 mm | 19.843 in
Depth 118 mm | 4.646 in
Length 2090 mm | 82.284 in
Net Weight, without mounting kit 32.5 kg | 71.65 lb

Electrical Specifications

Impedance 50 ohm
Operating Frequency Band 790 – 960 MHz
Polarization ±45°

Electrical Specifications

Frequency Band, MHz 790–890 890–960
Gain, dBi 18.1 18.6
Beam Centers, Horizontal, degrees ±27 ±27
Beamwidth, Horizontal, degrees 40 35
Beamwidth, Vertical, degrees 10 9.1
Beam Tilt, degrees 0–10 0–10
USLS (First Lobe), dB 18 18
Null Fill, dB -22 -22
Front-to-Back Ratio at 180°, dB 32 31
Front-to-Back Ratio, Copolarization 180° ± 30°, dB 26 23
Isolation, Same Beam, dB 25 25
VSWR | Return loss, dB 1.29 | 18.0 1.29 | 18.0
PIM, 3rd Order, 2 x 20 W, dBc -150 -150
Input Power per Port, maximum, watts 300 300

Electrical Specifications, BASTA

Frequency Band, MHz 790–890 890–960
Gain by all Beam Tilts, average, dBi 17.8 18.3
Gain by all Beam Tilts Tolerance, dB ±0.4 ±0.3
Gain by Beam Tilt, average, dBi 0 ° | 17.9
5 ° | 17.9
10 ° | 17.8
0 ° | 18.4
5 ° | 18.4
10 ° | 18.1
Beamwidth, Horizontal Tolerance, degrees ±2.3 ±2.2
Beamwidth, Vertical Tolerance, degrees ±0.5 ±0.4
USLS, beampeak to 20° above beampeak, dB 21 22
Front-to-Back Total Power at 180° ± 30°, dB 23 20
CPR at Boresight, dB 23 21
CPR at Sector, dB 12 7

Mechanical Specifications

Wind Loading @ Velocity, frontal 1,352.0 N @ 150 km/h (303.9 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 228.0 N @ 150 km/h (51.3 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 1,379.0 N @ 150 km/h (310.0 lbf @ 150 km/h)
Wind Speed, maximum 200 km/h | 124.274 mph

Packaging and Weights

Width, packed 593 mm | 23.346 in
Depth, packed 209 mm | 8.228 in
Length, packed 2229 mm | 87.756 in
Weight, gross 45.5 kg | 100.31 lb

Regulatory Compliance/Certifications

Agency Classification
CE Compliant with the relevant CE product directives
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant/Exempted
CHINA-ROHS Above maximum concentration value
UK-ROHS Compliant, Compliant/Exempted

General Specifications

Antenna Type Multibeam
Band Single band
Color Light Gray (RAL 7035)
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage
Radome Material Polyester fiberglass pultrusion
Radiator Material Low loss circuit board
Reflector Material Aluminum
RF Connector Interface 7-16 DIN Female
RF Connector Location Bottom
RF Connector Quantity, low band 4
RF Connector Quantity, total 4

Remote Electrical Tilt (RET) Information

RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 1 female | 1 male
Input Voltage 10–30 Vdc
Internal RET Low band (2)
Power Consumption, idle state, maximum 2 W
Power Consumption, normal conditions, maximum 13 W
Protocol 3GPP/AISG 2.0 (Single RET)

Dimensions

Width 504 mm | 19.843 in
Depth 118 mm | 4.646 in
Length 2090 mm | 82.284 in
Net Weight, without mounting kit 32.5 kg | 71.65 lb

Electrical Specifications

Impedance 50 ohm
Operating Frequency Band 790 – 960 MHz
Polarization ±45°

Electrical Specifications

Frequency Band, MHz 790–890 890–960
Gain, dBi 18.1 18.6
Beam Centers, Horizontal, degrees ±27 ±27
Beamwidth, Horizontal, degrees 40 35
Beamwidth, Vertical, degrees 10 9.1
Beam Tilt, degrees 0–10 0–10
USLS (First Lobe), dB 18 18
Null Fill, dB -22 -22
Front-to-Back Ratio at 180°, dB 32 31
Front-to-Back Ratio, Copolarization 180° ± 30°, dB 26 23
Isolation, Same Beam, dB 25 25
VSWR | Return loss, dB 1.29 | 18.0 1.29 | 18.0
PIM, 3rd Order, 2 x 20 W, dBc -150 -150
Input Power per Port, maximum, watts 300 300

Electrical Specifications, BASTA

Frequency Band, MHz 790–890 890–960
Gain by all Beam Tilts, average, dBi 17.8 18.3
Gain by all Beam Tilts Tolerance, dB ±0.4 ±0.3
Gain by Beam Tilt, average, dBi 0 ° | 17.9; 5 ° | 17.9; 10 ° | 17.8 0 ° | 18.4; 5 ° | 18.4; 10 ° | 18.1
Beamwidth, Horizontal Tolerance, degrees ±2.3 ±2.2
Beamwidth, Vertical Tolerance, degrees ±0.5 ±0.4
USLS, beampeak to 20° above beampeak, dB 21 22
Front-to-Back Total Power at 180° ± 30°, dB 23 20
CPR at Boresight, dB 23 21
CPR at Sector, dB 12 7

Mechanical Specifications

Wind Loading @ Velocity, frontal 1,352.0 N @ 150 km/h (303.9 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 228.0 N @ 150 km/h (51.3 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 1,379.0 N @ 150 km/h (310.0 lbf @ 150 km/h)
Wind Speed, maximum 200 km/h | 124.274 mph

Packaging and Weights

Width, packed 593 mm | 23.346 in
Depth, packed 209 mm | 8.228 in
Length, packed 2229 mm | 87.756 in
Weight, gross 45.5 kg | 100.31 lb

Regulatory Compliance/Certifications

Agency Classification
CE Compliant with the relevant CE product directives
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant/Exempted
CHINA-ROHS Above maximum concentration value
UK-ROHS Compliant, Compliant/Exempted
