HHTTP-65T-F-V2

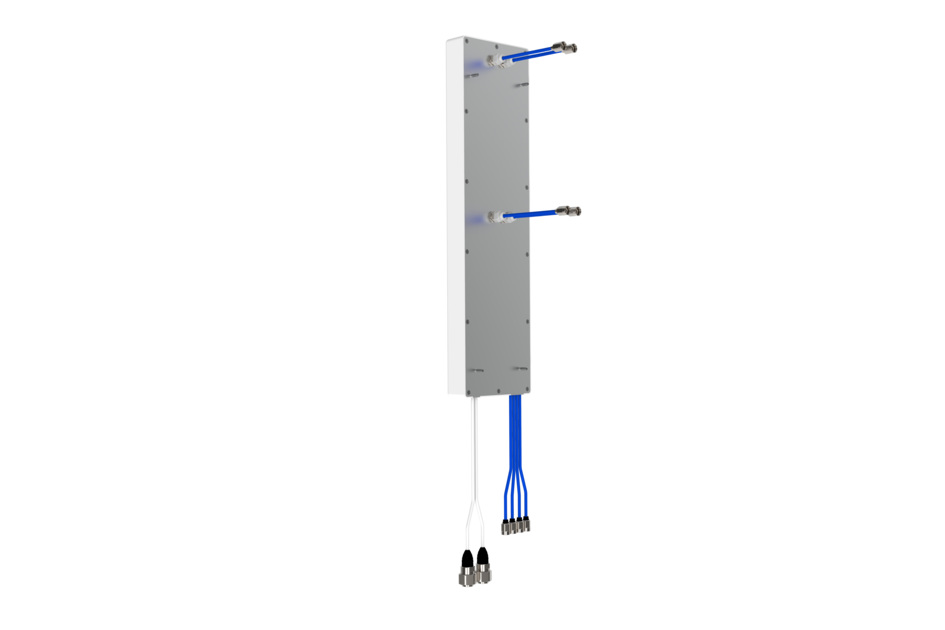

10-port small cell antenna, 4x 1695-2200, 4x 2496–2690 and 2x 5150-5925 MHz, 65° Horizontal Beamwidth, fixed tilt. Pigtail cables with Nex10 connector (male) for Port 1~8 and 4.3/10.0 male for Port 9, 10.

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.
Features and Benefits
  • FCC U-NII1 Compliant for gain and upper sidelobe suppression
  • Designed for inside-the-shroud deployments such as DOITT-approved structures
  • Supports AWS/PCS, BRS and LAA bands

General Specifications

Antenna Type Small Cell
Band Multiband
Color White
Performance Note Outdoor usage
Radome Material ASA, UV resistant
Radiator Material Low loss circuit board
Reflector Material Aluminum
RF Connector Interface 4.3-10 Male | NEX10 Male
RF Connector Location End of flexible lead
RF Connector Quantity, high band 2
RF Connector Quantity, mid band 8
RF Connector Quantity, total 10

Dimensions

Width 127 mm | 5.000 in
Depth 36 mm | 1.417 in
Length 470 mm | 18.504 in
Net Weight, with mounting kit 1.7 kg | 3.748 lb

5 GHz Port Power Table

Click on image to enlarge.

Array Layout

Click on image to enlarge.

Port Configuration

Click on image to enlarge.

Electrical Specifications

Impedance 50 ohm
Operating Frequency Band 1695 – 2200 MHz | 2496 – 2690 MHz | 5150 – 5925 MHz
Polarization ±45°
Total Input Power, maximum 400 W

Electrical Specifications

Frequency Band, MHz 1695–1920 1920–2200 2496–2690 5150–5925
Gain, dBi 8.2 8.2 8.0 3.2
Beamwidth, Horizontal, degrees 72 72 72 71
Beamwidth, Vertical, degrees 74 75 64 21
Beam Tilt, degrees 0 0 0 0
Front-to-Back Ratio, Copolarization 180° ± 30°, dB 27 26 26 21
Isolation, Cross Polarization, dB 20 20 20 20
Isolation, Inter-band, dB 20 20 20 20
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -150 -150 -150
Input Power per Port, maximum, watts 50 50 50 5

Electrical Specifications, BASTA

Frequency Band, MHz 1695–1920 1920–2200 2496–2690 5150–5925
Gain by all Beam Tilts, average, dBi 7.9 7.9 7.6 2.7
Gain by all Beam Tilts Tolerance, dB ±0.5 ±0.6 ±0.7 ±0.9
Beamwidth, Horizontal Tolerance, degrees ±3.9 ±3.5 ±7.4 ±3.3
Beamwidth, Vertical Tolerance, degrees ±9.3 ±12 ±7.1 ±1.6
CPR at Boresight, dB 23 21 20 14

Mechanical Specifications

Wind Loading @ Velocity, frontal 67.0 N @ 150 km/h (15.1 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 83.0 N @ 150 km/h (18.7 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 18.0 N @ 150 km/h (4.0 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h | 149.750 mph

Packaging and Weights

Width, packed 195 mm | 7.677 in
Depth, packed 140 mm | 5.512 in
Length, packed 575 mm | 22.638 in
Weight, gross 2.4 kg | 5.291 lb

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system

General Specifications

Antenna Type Small Cell
Band Multiband
Color White
Performance Note Outdoor usage
Radome Material ASA, UV resistant
Radiator Material Low loss circuit board
Reflector Material Aluminum
RF Connector Interface 4.3-10 Male | NEX10 Male
RF Connector Location End of flexible lead
RF Connector Quantity, high band 2
RF Connector Quantity, mid band 8
RF Connector Quantity, total 10

Dimensions

Width 127 mm | 5.000 in
Depth 36 mm | 1.417 in
Length 470 mm | 18.504 in
Net Weight, with mounting kit 1.7 kg | 3.748 lb

Electrical Specifications

Impedance 50 ohm
Operating Frequency Band 1695 – 2200 MHz | 2496 – 2690 MHz | 5150 – 5925 MHz
Polarization ±45°
Total Input Power, maximum 400 W

Electrical Specifications

Frequency Band, MHz 1695–1920 1920–2200 2496–2690 5150–5925
Gain, dBi 8.2 8.2 8.0 3.2
Beamwidth, Horizontal, degrees 72 72 72 71
Beamwidth, Vertical, degrees 74 75 64 21
Beam Tilt, degrees 0 0 0 0
Front-to-Back Ratio, Copolarization 180° ± 30°, dB 27 26 26 21
Isolation, Cross Polarization, dB 20 20 20 20
Isolation, Inter-band, dB 20 20 20 20
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -150 -150 -150
Input Power per Port, maximum, watts 50 50 50 5

Electrical Specifications, BASTA

Frequency Band, MHz 1695–1920 1920–2200 2496–2690 5150–5925
Gain by all Beam Tilts, average, dBi 7.9 7.9 7.6 2.7
Gain by all Beam Tilts Tolerance, dB ±0.5 ±0.6 ±0.7 ±0.9
Beamwidth, Horizontal Tolerance, degrees ±3.9 ±3.5 ±7.4 ±3.3
Beamwidth, Vertical Tolerance, degrees ±9.3 ±12 ±7.1 ±1.6
CPR at Boresight, dB 23 21 20 14

Mechanical Specifications

Wind Loading @ Velocity, frontal 67.0 N @ 150 km/h (15.1 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 83.0 N @ 150 km/h (18.7 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 18.0 N @ 150 km/h (4.0 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h | 149.750 mph

Packaging and Weights

Width, packed 195 mm | 7.677 in
Depth, packed 140 mm | 5.512 in
Length, packed 575 mm | 22.638 in
Weight, gross 2.4 kg | 5.291 lb
Click on image to enlarge.
Click on image to enlarge.
Click on image to enlarge.

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
