Warning Icon
This product will be discontinued on: November 30, 2023

For other alternatives, please contact us for more information.

1 Replacement products available
  • NNV4S6-65S-F4
    24-port, 4x 698-896MHz, 8x 1695-2690MHz, 12x 3300-4200MHz, 65°, 2 ft, 4deg fixed tilt for 698-896MHz and 1695-2690MHz, 0deg fixed tilt for 3300-4200MHz

NNV4S4PP-65S-F4

24-port, 4x 698-896MHz, 8x 1695-2690MHz, 8x CBRS, 4x LAA, 65°, 2 ft, 4deg fixed tilt for 698-896MHz and 1695-2690MHz, 0deg fixed tilt for 3300-4200MHz and 5150-5925MHz

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.

General Specifications

Antenna Type Small Cell
Band Multiband
Color Light Gray (RAL 7035)
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage
Radome Material Fiberglass, UV resistant
Reflector Material Aluminum
RF Connector Interface 4.3-10 Female
RF Connector Location Bottom
RF Connector Quantity, high band 12
RF Connector Quantity, mid band 8
RF Connector Quantity, low band 4
RF Connector Quantity, total 24

Dimensions

Width 498 mm | 19.606 in
Depth 197 mm | 7.756 in
Length 610 mm | 24.016 in
Net Weight, without mounting kit 14 kg | 30.865 lb

5 GHz Port Power Table

Click on image to enlarge.

Array Layout

Click on image to enlarge.

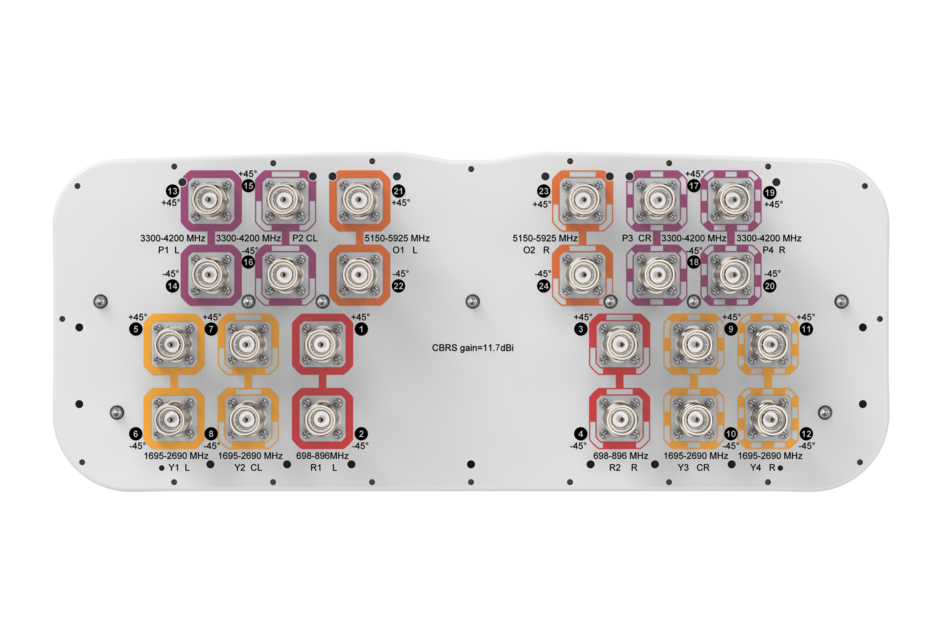

Port Configuration

Click on image to enlarge.

Electrical Specifications

Impedance 50 ohm
Operating Frequency Band 698 – 896 MHz | 1695 – 2690 MHz | 3300 – 4200 MHz | 5150 – 5925 MHz
Polarization ±45°
Total Input Power, maximum 1,000 W @ 50 °C

Electrical Specifications

Frequency Band, MHz 698–806 824–896 1695–1920 1920–2180 2300–2690 3300–3550 3550–3700 3700–4200 5150–5250 5250–5925
Gain, dBi 10.1 10.2 13.3 13.8 14.0 10.8 11.2 11.1 2.7 3.4
Beamwidth, Horizontal, degrees 80 74 70 63 60 63 63 72 51 39
Beamwidth, Vertical, degrees 41 38 19 17 14 32 33 33 22 22
Beam Tilt, degrees 4 4 4 4 4 0 0 0 0 0
Front-to-Back Ratio at 180°, dB 25 26 25 30 29 24 24 22 27 25
Isolation, Cross Polarization, dB 25 25 25 25 25 25 25 25 25 25
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -153 -153 -153 -153 -153 -145 -145 -145
Input Power per Port at 50°C, maximum, watts 80 80 80 80 80 50 50 50 5 5

Electrical Specifications, BASTA

Frequency Band, MHz 698–806 824–896 1695–1920 1920–2180 2300–2690 3300–3550 3550–3700 3700–4200 5150–5250 5250–5925
Gain by all Beam Tilts, average, dBi 9.6 9.9 12.5 13.3 13.4 10.4 10.6 10.4 2.1 2.5
Gain by all Beam Tilts Tolerance, dB ±0.7 ±0.5 ±1.2 ±0.7 ±0.9 ±0.5 ±0.8 ±0.8 ±1 ±1.3
Beamwidth, Vertical Tolerance, degrees ±3.9 ±3.6 ±2.4 ±2.1 ±1.3 ±5.6 ±4.8 ±7.9 ±3.4 ±3.1
CPR at Boresight, dB 15 14 15 16 17 14 14 13 15 11

Mechanical Specifications

Wind Loading @ Velocity, frontal 219.0 N @ 150 km/h (49.2 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 64.0 N @ 150 km/h (14.4 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum 285.0 N @ 150 km/h (64.1 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 180.0 N @ 150 km/h (40.5 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h | 149.750 mph

Packaging and Weights

Width, packed 608 mm | 23.937 in
Depth, packed 352 mm | 13.858 in
Length, packed 782 mm | 30.787 in
Weight, gross 24 kg | 52.911 lb

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant, Compliant/Exempted
