WAVEGUIDE-PRESSURE-WINDOW

Base Product

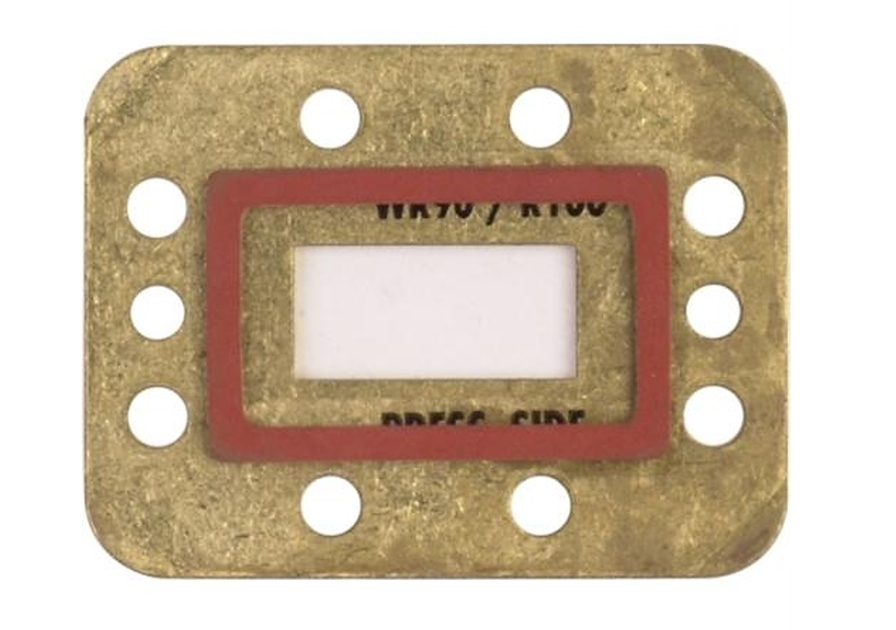

Pressure Window Waveguide

Configure Product Variants
Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.

Your web browser (Internet Explorer 11 or lower) is out of date and the functions below will not work with Internet Explorer.
Update your browser for more security, speed, functionality and experience on this site.

Update browser

Product Variants Show All Clear

Configure and display product variants of WAVEGUIDE-PRESSURE-WINDOW by selecting options

Loading...
Features and Benefits
CommScope offers a complete selection of microwave connectivity accessories to optimize your backhaul installation and performance.

Pressure windows provide separation between components that require pressurization from those that do not require it; typically installed at the equipment room end of the feeder line in a controlled environment.

Product Classification

Product Type Rectangular waveguide, pressure window

General Specifications

Interface CPR112F | CPR137F | CPR159F | CPR187F | CPR229F | CPR90F | UBR120 | UBR140 | UBR220 | UBR320 | UBR84 | UDR100 | UDR120 | UDR140 | UDR180 | UDR40 | UDR48 | UDR70 | UDR84 | UG-149A/U | UG-344/U | UG-39/U | UG-419/U | UG-51/U | UG-595/U
Mates to Interface CPR112G | CPR137G | CPR159G | CPR187G | CPR229G | CPR90G | PBR120 | PBR140 | PBR220 | PBR320 | PBR84 | PDR100 | PDR120 | PDR140 | PDR180 | PDR40 | PDR48 | PDR70 | PDR84 | UG-148C/U | UG-343B/U | UG-40B/U | UG-52B/U | UG-541A/U | UG-596A/U

Dimensions

Waveguide Size WR112 | WG15 | R84 | WR137 | WG14 | R70 | WR159 | WG13 | R58 | WR187 | WG12 | R48 | WR229 | WG11 | R40 | WR28 | WG22 | R320 | WR42 | WG20 | R220 | WR51 | WG19 | R180 | WR62 | WG18 | R140 | WR75 | WG17 | R120 | WR90 | WG16 | R100

Electrical Specifications

Operating Frequency Band 10.0 – 15.0 GHz | 12.4 – 18.0 GHz | 15.0 – 22.0 GHz | 17.7 – 26.5 GHz | 26.5 – 40.1 GHz | 3.3 – 4.9 GHz | 3.95 – 5.85 GHz | 4.9 – 7.05 GHz | 5.85 – 8.2 GHz | 7.05 – 10.0 GHz | 8.2 – 12.4 GHz

Product Classification

Product Type Rectangular waveguide, pressure window

General Specifications

Interface CPR112F | CPR137F | CPR159F | CPR187F | CPR229F | CPR90F | UBR120 | UBR140 | UBR220 | UBR320 | UBR84 | UDR100 | UDR120 | UDR140 | UDR180 | UDR40 | UDR48 | UDR70 | UDR84 | UG-149A/U | UG-344/U | UG-39/U | UG-419/U | UG-51/U | UG-595/U
Mates to Interface CPR112G | CPR137G | CPR159G | CPR187G | CPR229G | CPR90G | PBR120 | PBR140 | PBR220 | PBR320 | PBR84 | PDR100 | PDR120 | PDR140 | PDR180 | PDR40 | PDR48 | PDR70 | PDR84 | UG-148C/U | UG-343B/U | UG-40B/U | UG-52B/U | UG-541A/U | UG-596A/U

Dimensions

Waveguide Size WR112 | WG15 | R84 | WR137 | WG14 | R70 | WR159 | WG13 | R58 | WR187 | WG12 | R48 | WR229 | WG11 | R40 | WR28 | WG22 | R320 | WR42 | WG20 | R220 | WR51 | WG19 | R180 | WR62 | WG18 | R140 | WR75 | WG17 | R120 | WR90 | WG16 | R100

Electrical Specifications

Operating Frequency Band 10.0 – 15.0 GHz | 12.4 – 18.0 GHz | 15.0 – 22.0 GHz | 17.7 – 26.5 GHz | 26.5 – 40.1 GHz | 3.3 – 4.9 GHz | 3.95 – 5.85 GHz | 4.9 – 7.05 GHz | 5.85 – 8.2 GHz | 7.05 – 10.0 GHz | 8.2 – 12.4 GHz
