619632-001-00

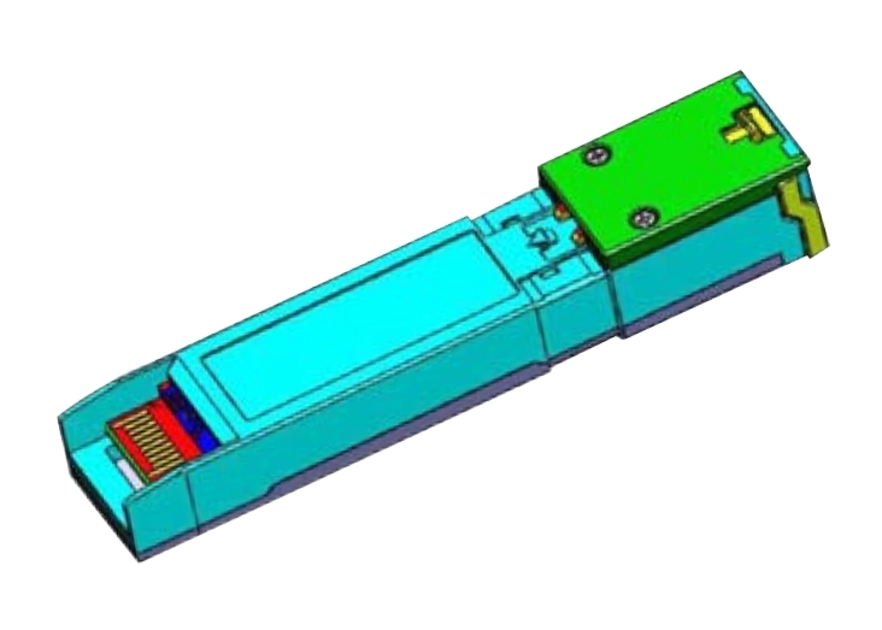

CommScope FLX™ Combo XGS-PON/GPON Optical Module, SFP+, Single fiber bi-directional data links with Tx1: 9.953 Gbps Rx1: 9.953 Gbps / 2.488 Gbps Tx2: 2.488 Gbps Rx2: 1.244 Gbps

Contact Us for a Quote
Specifications
Finish making your selections or clear them to view relevant specifications.
Features and Benefits
FEATURES
  • Combination of XGS-PON OLT and GPON OLT optical transceivers in an SFP+ package
  • Complies with ITU-T G.9807.1 N2 class
  • Complies with ITU-T G.984.2 C+ class
  • Single fiber bi-directional data links with
    • Tx1: 9.953 Gbps
    • Rx1: 9.953 Gbps / 2.488 Gbps
    • Tx2: 2.488 Gbps
    • Rx2: 1.244 Gbps
  • 1577 nm continuous-mode transmitter with EML laser
  • 1490 nm continuous-mode transmitter with DFB laser
  • 1270 nm burst-mode receiver with APD-TIA
  • 1310 nm burst-mode receiver with APD-TIA
  • 2-wire interface for integrated digital diagnostic monitoring
  • +3.3V power supply, 3.5W power consumption
  • RoHS With Exemptions 7C(I)
  • 20km Reach
  • Operating temp: -40 ~ 90°C
  • Supports 20 Pin-out

Product Classification

Product Type Optical transceiver
Product Brand CommScope FLX™
Product Series SFP

General Specifications

Reflectance, maximum –12 dB @ 1260–1280 nm (XGS) | –20 dB @ 1290–1330 nm (GPON)
Differential Power, maximum 20 dB
Transmission Distance, maximum 20 km

Dimensions

Height 12.294 mm | 0.484 in
Width 13.894 mm | 0.547 in
Length 64.287 mm | 2.531 in

Dimension Drawing

Click on image to enlarge.

Port Configuration

Click on image to enlarge.

Electrical Specifications

Input Current, maximum 1115 mA
Input Voltage +3.14 to +3.47 Vdc
Input Voltage, maximum 3.6 V
Power Consumption, maximum 3.5 W
Receiver Data Output Differential Swing Range 300–800 mVpp @ 2.488 Gbps | 300–800 mVpp @ 9.953 Gbps | 600–1600 mVpp @ 1.244 Gbps
Receiver Data Recovery Time, maximum 100 ns @ 9.953 Gbps | 25.6 ns @ 1.244 Gbps | 25.6 ns @ 2.488 Gbps
Receiver Loss of Signal Assert Time, maximum 100 ns @ 9.953 Gbps | 50 ns @ 1.244 Gbps | 50 ns @ 2.488 Gbps
Receiver Loss of Signal de-Assert Time, maximum 12.8 ns @ 1.244 Gbps | 12.8 ns @ 2.488 Gbps | 50 ns @ 9.953 Gbps
Receiver Loss of Signal Detected Voltage High, minimum 2.4 V
Receiver Loss of Signal Detected Voltage Low, maximum 0.4 V
Transmitter Data Input Differential Swing Range 200–850 mVpp @ 2.488 Gbps | 200–850 mVpp @ 9.953 Gbps
Differential Impedance, typical 100 ohm
Transmitter Fault Indication Voltage High, mminimum 2.4 V
Transmitter Fault Indication Voltage Low, maximum 0.4 V

Optical Specifications

Optical Isolation, minimum –30 dB (from external below 1260–1280 nm) | –30 dB (from external below 1342–1650 nm)
Optical Port Interface SC/UPC
Receiver Center Wavelength 1270 nm nominal (1260–1280 nm) @ 2.488 Gbps | 1270 nm nominal (1260–1280 nm) @ 9.953 Gbps | 1310 nm nominal (1290–1310 nm) @ 1.244 Gbps
Receiver Loss of Signal Assert Level, minimum –30 dBm @ 9.953 Gbps | –31 dBm @ 2.488 Gbps | –33 dBm @ 1.244 Gbps
Receiver Loss of Signal de-Assert, maximum –45 dBm @ 1.244 Gbps | –45 dBm @ 2.488 Gbps | –45 dBm @ 9.953 Gbps
Receiver Saturation, minimum –12 dBm @ 1.244 Gbps | –7 dBm @ 9.953 Gbps | –9 dBm @ 2.488 Gbps
Receiver Sensitivity, maximum –28 dBm @ 9.953 Gbps | –29.5 dBm @ 2.488 Gbps | –32 dBm @ 1.244 Gbps
Transmitter Center Wavelength 1490 nm nominal (1480–1500 nm) @ 2.488 Gbps | 1577 nm nominal (1575–1580 nm) @ 9.953 Gbps
Transmitter Extinction Ratio, minimum 8.2 dB
Transmitter Reflected Power Tolerance, minimum -15 dB
Transmitter Launch Power Range +4 to +7 dBm
Transmitter Launch Power OFF Transmitter, maximum –39 dBm @ 9.953 Gbps | –40 dBm @ 2.488 Gbps

Environmental Specifications

Operating Temperature -40 °C to +90 °C (-40 °F to +194 °F)
Operating Humidity 5%–85%
